1409749 | Phoenix Contact
Connector kit, size B24, 24 pole + PE , IP65, 1409749
Unit Price (€ / pc.)
127.9607 € *
Available: 0 pcs.
Leadtime: On Request **
Connector Set, 1409749, Phoenix Contact

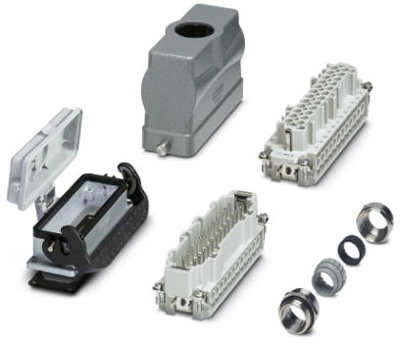

Connector set, consisting of: B24 sleeve housing and panel mounting base, 24-pos. plug and socket insert, M32 cable gland.
Technical Data
- Connection type of the conductor: Screw connection
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Housing material: Aluminium
- Number of contacts: 24
- Degree of protection: IP65
- Rated current: 20 A
- Rated voltage: 500 V
- Rated impulse voltage: 6 kV
- PE contact: true
- Length: 140 mm
- Width: 43 mm
- Height: 135 mm
Technical specifications
| Version | Steckverbinder-Set | |
| Shell size | B24 | |
| Shell Material | Aluminiumdruckguss | |
| Cable Outlet | M32, gerade | |
| Contact connection | Schraubanschluss | |
| PE contact | Yes | |
| Pin number | 24-polig | |
| Degree of protection (IP) | IP65 | |
| Type of locking | Längsbügelverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
