1409736 | Phoenix Contact

Connector kit, size B16, 16 pole + PE , IP65, 1409736

Order No.: 62P2528
EAN: 4046356752688
MPN:
1409736
HC-KIT-B16-R03
Series: HC-KIT
1409736 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
99.3769 € *
Available in 10 days: 9 pcs. - if ordered today
Total Price:
99.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
99.3769 €

Connector Set, 1409736, Phoenix Contact

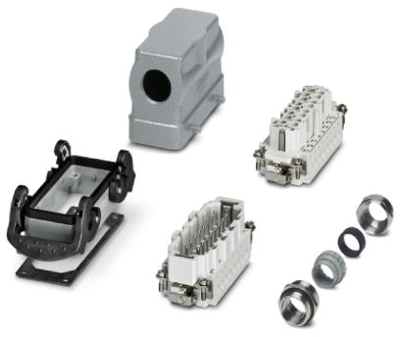

Connector set, consisting of: B16 sleeve housing and panel mounting base, 16-pos. plug and socket insert, M25 cable gland.

Technical Data

  • Connection type of the conductor: Screw connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: Aluminium
  • Number of contacts: 16
  • Degree of protection: IP65
  • Rated current: 20 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • PE contact: true
  • Length: 114 mm
  • Width: 43 mm
  • Height: 92 mm
Technical specifications
Degree of protection (IP) IP65
Type of locking cross bow locking
Shell size B16
Cable Outlet M25, angled
Shell Material die-cast aluminum
Pin number 16 pole
Version connector kit
PE contact Yes
Contact connection screw connection
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
