1409697 | Phoenix Contact
Connector kit, size B10, 10 pole + PE , IP65, 1409697
Order No.: 62P2524
EAN: 4046356752442
MPN:
1409697
HC-KIT-B10-R01
Unit Price (€ / pc.)
95.2714 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Connector Set, 1409697, Phoenix Contact

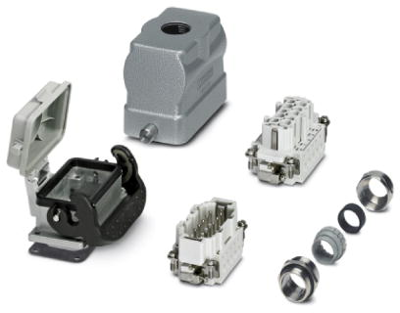

Connector set, consisting of: B10 sleeve housing and panel mounting base, 10-pos. plug and socket insert, M25 cable gland.
Technical Data
- Connection type of the conductor: Screw connection
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Housing material: Aluminium
- Number of contacts: 10
- Degree of protection: IP65
- Rated current: 24 A
- Rated voltage: 500 V
- Rated impulse voltage: 6 kV
- PE contact: true
- Length: 93 mm
- Width: 43 mm
- Height: 123 mm
Technical specifications
| Version | connector kit | |
| Shell size | B10 | |
| Shell Material | die-cast aluminum | |
| Cable Outlet | M25, straight | |
| Contact connection | screw connection | |
| PE contact | Yes | |
| Pin number | 10 pole | |
| Degree of protection (IP) | IP65 | |
| Type of locking | longitudinal bow locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
