1409684 | Phoenix Contact

Connector kit, size B6, 6 pole + PE , IP65, 1409684

Order No.: 62P2523
EAN: 4046356752435
MPN:
1409684
HC-KIT-B06-R02
Series: HC-KIT
1409684 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
79.9561 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
79.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
79.9561 €

Connector Set, 1409684, Phoenix Contact

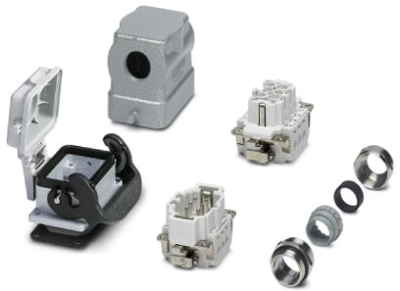

Connector set, consisting of: B6 sleeve housing and panel mounting base, 6-pos. plug and socket insert, M20 cable gland.

Technical Data

  • Connection type of the conductor: Screw connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: Aluminium
  • Number of contacts: 6
  • Degree of protection: IP65
  • Rated current: 24 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • PE contact: true
  • Length: 80 mm
  • Width: 43 mm
  • Height: 83 mm
Technical specifications
Filter Property Value
Cable Outlet M20, angled
Type of locking longitudinal bow locking
Degree of protection (IP) IP65
PE contact Yes
Contact connection screw connection
Shell size B6
Pin number 6 pole
Version connector kit
Shell Material die-cast aluminum
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
