1409668 | Phoenix Contact

Connector kit, size D7, 4 pole + PE , IP65, 1409668

Order No.: 62P2521
EAN: 4046356752411
MPN:
1409668
HC-KIT-A04-R01
Series: HC-KIT
1409668 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
79.0636 € *
Available in 10 days: 14 pcs. - if ordered today
Total Price:
79.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
79.0636 €

Connector Set, 1409668, Phoenix Contact

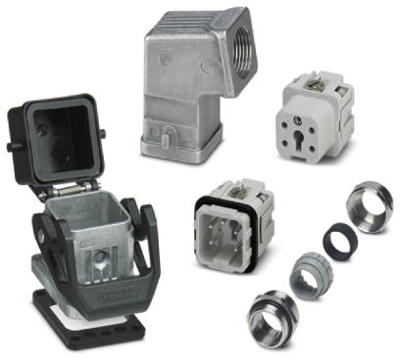

Connector set, consisting of: D7 sleeve housing and panel mounting base, 4-pos. plug and socket insert, M20 cable gland.

Technical Data

  • Connection type of the conductor: Screw connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: Aluminium
  • Number of contacts: 4
  • Degree of protection: IP65
  • Rated current: 24 A
  • Rated voltage: 230 V
  • Rated impulse voltage: 4 kV
  • PE contact: true
  • Length: 34.2 mm
  • Width: 38 mm
  • Height: 78.3 mm
Technical specifications
Filter Property Value
Pin number 4 pole
PE contact Yes
Contact connection screw connection
Cable Outlet M20, angled
Version connector kit
Shell size D7
Shell Material die-cast aluminum
Degree of protection (IP) IP65
Type of locking longitudinal bow locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
RoHS conform Yes
Substance description 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
Date of RoHS guidelines 3/31/15
