1408794 | Phoenix Contact

Connector kit, size B24, 24 pole + PE , IP66, 1408794

Order No.: 62P2402
EAN: 4046356834117
MPN:
1408794
HC-EVO-B24PT-BWSC-HH-M32-PLRBK
Series: HC-EVO
1408794 Phoenix Contact Rectangular Connector Sets

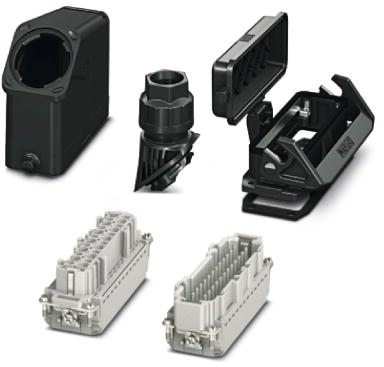

Image may differ
Unit Price (€ / pc.)
111.7410 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
111.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
111.7410 €

Connector Set, 1408794, Phoenix Contact

EVO connector set, B24 series, plastic housing, consisting of sleeve housing, panel mounting base, push-in contact inserts: 1407735, 1407736, 1407660, 1407656, 1407671

FEATURES

  • Halogen-free plastic
  • Lower risk of condensation
  • Completely corrosion-resistant
  • Both contact insert PE sheets are connected by means of a metal frame integrated in the sleeve housing

Technical Data

  • Connection type of the conductor: Push-in connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: PA
  • Number of contacts: 24
  • Degree of protection: IP66
  • Rated current: 16 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • PE contact: true
  • Length: 140.5 mm
  • Width: 53 mm
  • Height: 130 mm
Technical specifications
Contact connection push-in
Pin number 24 pole
Shell size B24
Type of locking longitudinal bow locking
Cable Outlet M32, straight
Degree of protection (IP) IP66
Shell Material PA
Version connector kit
PE contact Yes
Logistics
Customs tariff number 85366990
Country of origin PL
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
