1407711 | Phoenix Contact

Connector kit, size B10, 10 pole + PE , IP66, 1407711

Order No.: 62P2336
EAN: 4046356777766
MPN:
1407711
HC-EVO-B10PT-BWD-HL-M25-PLRBK
Series: HC-EVO
1407711 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
72.2568 € *
Available in 10 days: 23 pcs. - if ordered today
Total Price:
72.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
72.2568 €

Connector Set, 1407711, Phoenix Contact

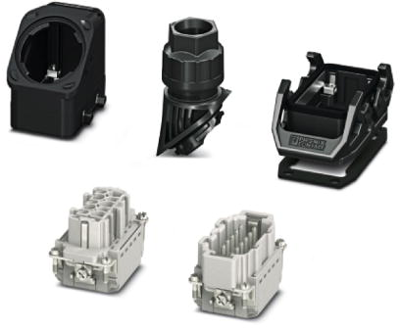

EVO connector set consisting of: 1407729, 1407730, 1407634, 1407628, 1407670

FEATURES

  • Halogen-free plastic
  • Lower risk of condensation
  • Completely corrosion-resistant
  • Both contact insert PE sheets are connected by means of a metal frame integrated in the sleeve housing

Technical Data

  • Connection type of the conductor: Push-in connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: PA
  • Number of contacts: 10
  • Degree of protection: IP66
  • Rated current: 16 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • PE contact: true
  • Length: 93.5 mm
  • Width: 53 mm
  • Height: 106 mm
Technical specifications
Shell Material PA
PE contact Yes
Type of locking cross bow locking
Version connector kit
Contact connection push-in
Cable Outlet M25, straight
Degree of protection (IP) IP66
Pin number 10 pole
Shell size B10
Logistics
Customs tariff number 85366990
Country of origin PL
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
