1407710 | Phoenix Contact

Connector kit, size B6, 6 pole + PE , IP66, 1407710

Order No.: 62P2309
EAN: 4046356777759
MPN:
1407710
HC-EVO-B06PT-BWSC-HL-M20-PLRBK
Series: HC-EVO
1407710 Phoenix Contact Rectangular Connector Sets
Image may differ
Unit Price (€ / pc.)
65.3548 € *
Available in 5 Days: 71 pcs. - if ordered today
Total Price:
65.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
65.3548 €

Connector Set, 1407710, Phoenix Contact

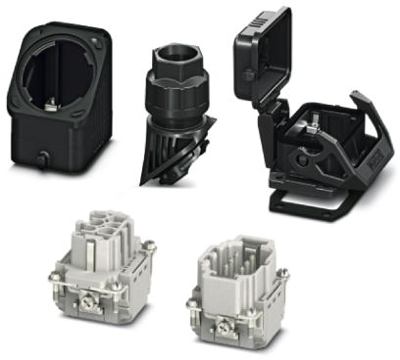

EVO connector set, B6 series, plastic housing, consisting of: 1407727, 1407728, 1407622, 1407619, 1407669, plastic housing.

FEATURES

  • Halogen-free plastic
  • Lower risk of condensation
  • Completely corrosion-resistant
  • Both contact insert PE sheets are connected by means of a metal frame integrated in the sleeve housing

Technical Data

  • Connection type of the conductor: Push-in connection
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Housing material: PA
  • Number of contacts: 6
  • Degree of protection: IP66
  • Rated current: 16 A
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • PE contact: true
  • Length: 80.5 mm
  • Width: 53 mm
  • Height: 103 mm
Technical specifications
Filter Property Value
Pin number 6 pole
Cable Outlet M20, straight
Degree of protection (IP) IP66
Type of locking longitudinal bow locking
PE contact Yes
Contact connection push-in
Shell size B6
Version connector kit
Shell Material PA
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
