3240541 | Phoenix Contact

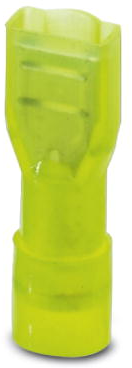

Insulated flat plug sleeve, 6.3 x 0.8 mm, 4.0 to 6.0 mm², AWG 12 to 10, brass, yellow, 3240541
Order No.: 60P7402
EAN: 4046356528115
MPN:
3240541
C-SCFFI 6/6,3X0,8
Unit Price (€ / pc.)
0.5712 € *
Available: 20 pcs.
Leadtime: 2 Weeks **
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5712 €
10 pcs.
0.5117 €
50 pcs.
0.4641 €
100 pcs.
0.4165 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector C-SCFFI 6/6,3X0,8
Flat receptacle, fully insulated, yellow, 4-6 mm², For plug 6,3 x 0,8 mm
The technical features of 3240541 from Phoenix Contact at a glance
- Flange shape : Flat plug sleeve
- Product type designation : Connector
- Product compliant (following DIN) : No
- Isolation present : Yes
- Article description : C-SCFFI 6/6,3X0,8
- max. area of the nominal cross section : 6 mm²
- min. Nominal cross section : 4 mm²
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 12 to 10 | |
| Insulation colour | yellow | |
| Suitable for | 6.3 x 0.8 mm | |
| Isolated | Yes | |
| Length | 26 mm | |
| Cable cross-section | 4.0 to 6.0 mm² | |
| Material | brass |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
