3240538 | Phoenix Contact

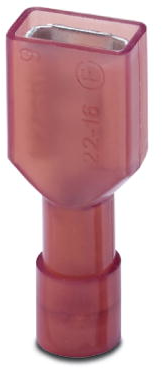

Insulated flat plug sleeve, 6.3 x 0.8 mm, 0.5 to 1.5 mm², AWG 20 to 16, brass, red, 3240538
Order No.: 60P7398
MPN:
3240538
C-SCFFI 1,5/6,3X0,8
EAN: 4046356528085
Images may differ
Unit Price (€ / pc.)
0.5236 € *
Available: 0 pcs.
Next delivery: 15 pcs. on 2024-01-31
Leadtime: 2 Weeks **
Add to Cart
Total Price:
0.52 € *
Quantity
Price per unit*
5 pcs.
0.5236 €
10 pcs.
0.4760 €
50 pcs.
0.4284 €
100 pcs.
0.3927 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Connector C-SCFFI 1,5/6,3X0,8
Flat receptacle, fully insulated, red, 0,5-1,5 mm², For plug 6,3 x 0,8 mm
The technical features of 3240538 from Phoenix Contact at a glance
- Article description : C-SCFFI 1,5/6,3X0,8
- Isolation present : Yes
- Product compliant (following DIN) : No
- Product type designation : Connector
- Flange shape : Flat plug sleeve
- min. Nominal cross section : 0.5 mm²
- max. area of the nominal cross section : 1.5 mm²
Further links to Phoenix Contact 3240538
Under the following links you will find more information about Phoenix Contact 3240538
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 16 | |
| Insulation colour | red | |
| Suitable for | 6.3 x 0.8 mm | |
| Isolated | Yes | |
| Length | 21.5 mm | |
| Cable cross-section | 0.5 to 1.5 mm² | |
| Material | brass |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
