3240537 | Phoenix Contact
Insulated flat plug sleeve, 4.8 x 0.8 mm, 0.5 to 1.5 mm², AWG 20 to 16, brass, red, 3240537
Order No.: 60P7397
EAN: 4046356528078
MPN:
3240537
C-SCFFI 1,5/4,8X0,8
Unit Price (€ / pc.)
0.5831 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
0.58 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5831 €
10 pcs.
0.5355 €
50 pcs.
0.4879 €
100 pcs.
0.4522 €
*incl. VAT plus shipping costs
**Subject to prior sale

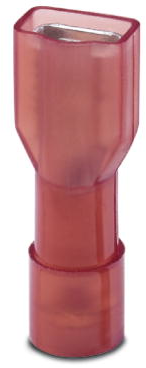

Connector C-SCFFI 1,5/4,8X0,8
Flat receptacle, fully insulated, red, 0,5-1,5 mm², For plug 4,8 x 0,8 mm
The technical features of 3240537 from Phoenix Contact at a glance
- Flange shape : Flat plug sleeve
- Product type designation : Connector
- Product compliant (following DIN) : No
- Isolation present : Yes
- Article description : C-SCFFI 1,5/4,8X0,8
- max. area of the nominal cross section : 1.5 mm²
- min. Nominal cross section : 0.5 mm²
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 16 | |
| Insulation colour | red | |
| Suitable for | 4.8 x 0.8 mm | |
| Isolated | Yes | |
| Length | 19.5 mm | |
| Cable cross-section | 0.5 to 1.5 mm² | |
| Material | brass |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
