1423966 | Phoenix Contact
Panel feed through, 0.5 m, socket, 4 pole straight to open end, 2.5 mm², AWG 16-14, 1423966
Unit Price (€ / pc.)
19.5398 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
19.54 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5398 €
10 pcs.
18.3141 €
25 pcs.
17.2431 €
50 pcs.
16.5053 €
*incl. VAT plus shipping costs
Subject to prior sale

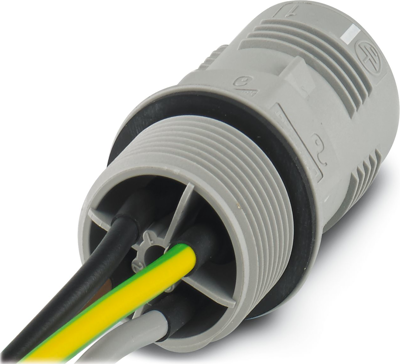

Panel feed-through, 1423966, Phoenix Contact
Panel feed-through, connection method: Single wires (Welded-on), number of positions: 3+PE, M25, Pin, 1 mm² - 2.5 mm², 690 V, 20 A, PA, gray, without QUICKON nut, coding: coded, 2.5 mm², wires cut flat at the end, cable length: 0.5 m.
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable length | 0.5 m | |
| AWG cross-section | AWG 16-14 | |
| Connection 1 design | straight | |
| Cable cross-section | 2.5 mm² | |
| Version | panel feed through | |
| Connection (2) | open end | |
| Connection (1) | socket, 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
