2854102 | Phoenix Contact

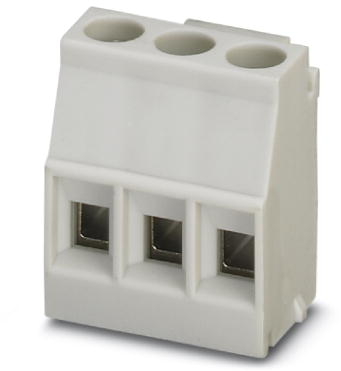

PCB terminal, 3 pole, pitch 5 mm, AWG 26-14, 24 A, screw connection, light gray, 2854102
Unit Price (€ / pc.)
2.5823 € *
Available in 5 Days: 2,799 pcs. - if ordered today
PCB terminal, 2854102, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 5 mm, connection method: screw connection with tension sleeve, conductor/PCB connection direction: 0 °, color: light gray, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Maintenance-free and vibration-resistant
- PCB terminal block is orthogonal to the PCB
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26-14 | |
| Colour | light gray | |
| Connection | screw connection | |
| Rated voltage | 400 V | |
| Cable cross-section | 0.14-2.5 mm² | |
| Width | 15.98 mm | |
| Height | 18.05 mm | |
| Assembly | THT | |
| Pin number | 3 pole | |
| Grid | 5 mm | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
