1993763 | Phoenix Contact

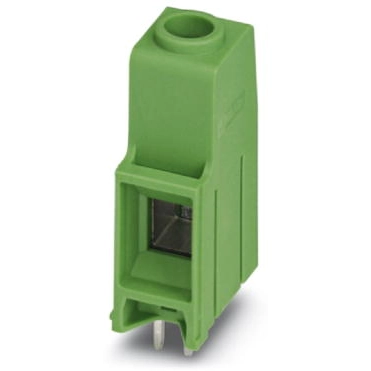

PCB terminal, 1 pole, pitch 10.16 mm, AWG 20-6, 76 A, screw connection, green, 1993763
Unit Price (€ / pc.)
3.7842 € *
Available in 10 days: 400 pcs. - if ordered today
Total Price:
3.78 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7842 €
10 pcs.
3.4867 €
50 pcs.
3.1654 €
100 pcs.
2.8560 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1993763, Phoenix Contact

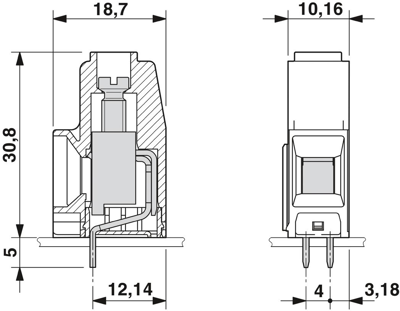

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 10.16 mm, connection method: screw connection with tension sleeve, conductor/PCB connection direction: 0 °, color: green, pin layout: linear front pinning, solder pin: 5 mm, number of solder pins per potential: 2.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 35.8 mm | |
| Rated voltage | 1 kV | |
| Width | 10.16 mm | |
| Rated current | 76 A | |
| Grid | 10.16 mm | |
| Connection | screw connection | |
| AWG cross-section | AWG 20-6 | |
| Assembly | THT | |
| Colour | green | |
| Cable cross-section | 0.5-16 mm² | |
| Pin number | 1 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
