1991341 | Phoenix Contact

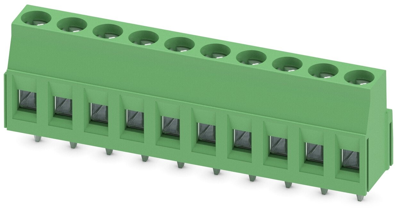

PCB terminal, 10 pole, pitch 5.08 mm, AWG 24-14, 16 A, screw connection, green, 1991341
Unit Price (€ / pc.)
4.1293 € *
Available in 5 Days: 3,598 pcs. - if ordered today
Total Price:
4.13 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1293 €
10 pcs.
3.8080 €
50 pcs.
3.4629 €
100 pcs.
3.1178 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1991341, Phoenix Contact

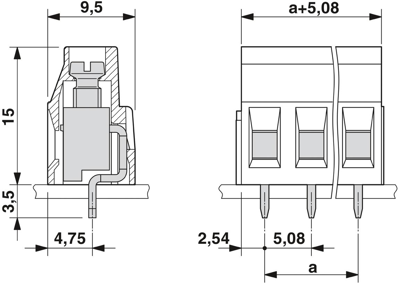

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: H1L Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-14 | |
| Colour | green | |
| Pin number | 10 pole | |
| Grid | 5.08 mm | |
| Width | 50.8 mm | |
| Assembly | THT | |
| Rated voltage | 400 V | |
| Rated current | 16 A | |
| Connection | screw connection | |
| Height | 18.5 mm | |
| Cable cross-section | 0.2-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
