1991176 | Phoenix Contact

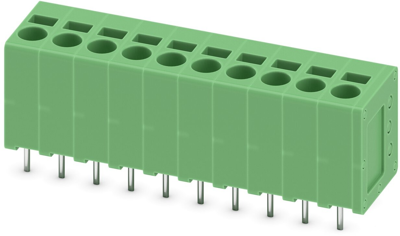

PCB terminal, 10 pole, pitch 5 mm, AWG 24-12, 24 A, spring-clamp connection, green, 1991176
Unit Price (€ / pc.)
5.0218 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
5.02 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0218 €
10 pcs.
4.5220 €
100 pcs.
3.8437 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1991176, Phoenix Contact

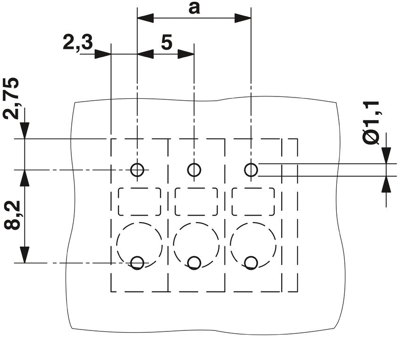

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear double pinning, solder pin: 2.5 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Operation and conductor connection from one direction enable integration into front of device
- Two solder pins reduce the mechanical strain on the soldering spots
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.2-4.0 mm² | |
| Height | 16.9 mm | |
| AWG cross-section | AWG 24-12 | |
| Rated current | 24 A | |
| Width | 51.4 mm | |
| Connection | spring-clamp connection | |
| Colour | green | |
| Rated voltage | 400 V | |
| Assembly | THT | |
| Pin number | 10 pole | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
