1990986 | Phoenix Contact

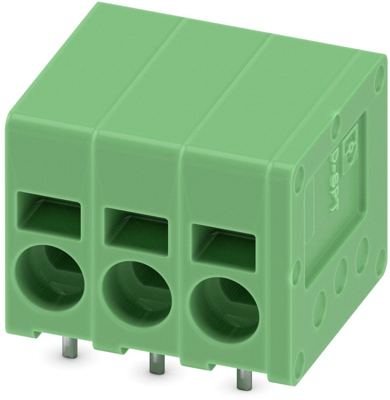

PCB terminal, 3 pole, pitch 5 mm, AWG 24-12, 24 A, spring-clamp connection, green, 1990986
Unit Price (€ / pc.)
1.6660 € *
Available: 0 pcs.
Available in 10 days: 22,356 pcs.
Leadtime: 2 Weeks **
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
10 pcs.
1.5113 €
100 pcs.
1.2852 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1990986, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 2.5 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Operation and conductor connection from one direction enable integration into front of device
- Two solder pins reduce the mechanical strain on the soldering spots
Technical specifications
| AWG cross-section | AWG 24-12 | |
| Grid | 5 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Rated current | 24 A | |
| Colour | green | |
| Height | 18.9 mm | |
| Rated voltage | 400 V | |
| Connection | spring-clamp connection | |
| Pin number | 3 pole | |
| Width | 16.4 mm |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
