1990876 | Phoenix Contact

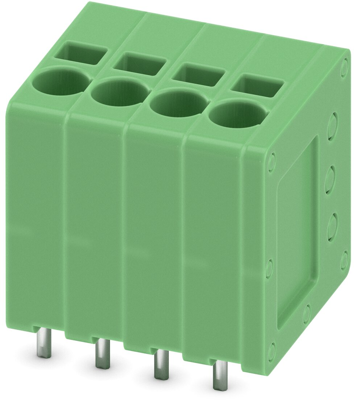

PCB terminal, 4 pole, pitch 3.5 mm, AWG 24-16, 17.5 A, spring-clamp connection, green, 1990876
Unit Price (€ / pc.)
1.4042 € *
Available in 10 days: 4,100 pcs. - if ordered today
PCB terminal, 1990876, Phoenix Contact

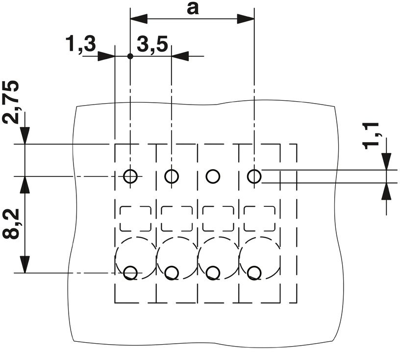

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear double pinning, solder pin: 2.5 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Operation and conductor connection from one direction enable integration into front of device
- Two solder pins reduce the mechanical strain on the soldering spots
Technical specifications
| Height | 16.9 mm | |
| Grid | 3.5 mm | |
| Pin number | 4 pole | |
| Connection | spring-clamp connection | |
| Colour | green | |
| Rated current | 17.5 A | |
| Cable cross-section | 0.2-1.5 mm² | |
| Width | 15 mm | |
| Rated voltage | 200 V | |
| AWG cross-section | AWG 24-16 |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
