1989780 | Phoenix Contact

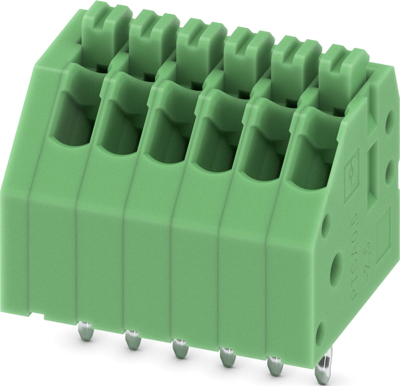

Name: PCB terminal, 6 pole, pitch 2.5 mm, AWG 24-20, 2 A, push-in, green, 1989780
Brand: Phoenix Contact
SKU: 63P5043
Availability: InStock

PCB terminal, 6 pole, pitch 2.5 mm, AWG 24-20, 2 A, push-in, green, 1989780

Order No.: 63P5043

EAN: 4017918973384

MPN:

1989780

PTSA 0,5/ 6-2,5-F

Series: PTSA

Unit Price (€ / pc.)

1.5708 € *

Available in 10 days: 95 pcs. - if ordered today

Total Price:

1.57 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

PCB terminal blocks, 1989780, Phoenix Contact

Printed circuit board terminal, nominal current: 2 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm², number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: PTSA 0,5, pitch: 2.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.6 mm, number of solder pins per potential: 1, Soldering legs in front area, one-rowed.

Features

Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Angled connection enables multi-row arrangement on the PCB

Technical specifications

Filter	Property	Value
	Pin number	6 pole
	Grid	2.5 mm
	Cable cross-section	0.14-0.5 mm²
	AWG cross-section	AWG 24-20
	Contact distance	RM 2.5
	Rated current	2 A
	Rated voltage	250 V

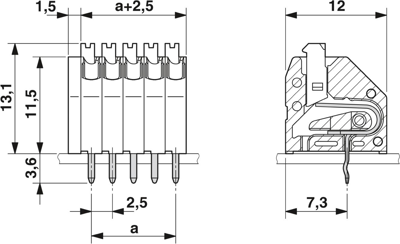

	Width	16.5 mm
	Height	16.7 mm
	Depth	12 mm
	Connection	push-in
	Assembly	THT
	Colour	green
