1988891 | Phoenix Contact

PCB terminal, 11 pole, pitch 5 mm, AWG 26-14, 17.5 A, screw connection, green, 1988891

Order No.: 63P7923
EAN: 4046356036887
MPN:
1988891
PTA 1,5/11-5,0
Series: PTA

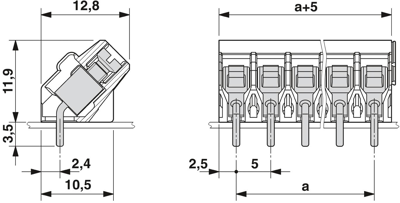

1988891 Phoenix Contact PCB Terminal Blocks Image 1

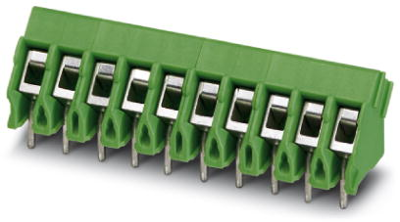

1988891 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
4.2245 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
4.22 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2245 €
10 pcs.
3.8913 €
50 pcs.
3.5343 €
100 pcs.
3.1773 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1988891, Phoenix Contact

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 11, number of rows: 1, number of positions per row: 11, pitch: 5 mm, connection method: screw connection with wire protector, conductor/PCB connection direction: 45 °, color: green, pin layout: linear front pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • High terminal block capacity thanks to rectangular terminal block space
  • Angled connection enables multi-row arrangement on the PCB
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Filter Property Value
Rated voltage 400 V
Rated current 17.5 A
Grid 5 mm
Colour green
Connection screw connection
Pin number 11 pole
Cable cross-section 0.14-2.5 mm²
AWG cross-section AWG 26-14
Height 15.4 mm
Width 55 mm
Logistics
Property Value
Country of origin GR
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
