1985373 | Phoenix Contact

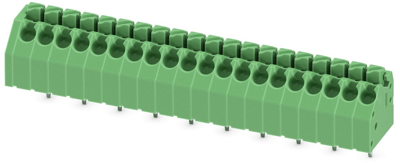

PCB terminal, 20 pole, pitch 3.5 mm, AWG 24-16, 8 A, spring-clamp connection, green, 1985373
Unit Price (€ / pc.)
5.6168 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
5.62 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6168 €
10 pcs.
5.0575 €
100 pcs.
4.2959 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1985373, Phoenix Contact
PCB terminal block, nominal current: 8 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 20, number of rows: 1, number of positions per row: 20, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: Zigzag pinning M, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Angled connection enables multi-row arrangement on the PCB
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 24-16 | |
| Rated current | 8 A | |
| Grid | 3.5 mm | |
| Width | 71.5 mm | |
| Height | 16.7 mm | |
| Cable cross-section | 0.2-1.5 mm² | |
| Pin number | 20 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 400 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
