1985344 | Phoenix Contact
PCB terminal, 17 pole, pitch 3.5 mm, AWG 24-16, 8 A, spring-clamp connection, green, 1985344
Unit Price (€ / pc.)
3.4153 € *
Available in 10 days: 900 pcs. - if ordered today

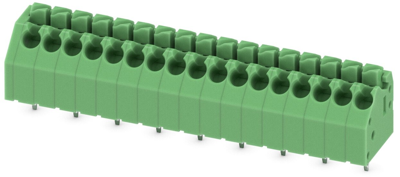

PCB terminal, 1985344, Phoenix Contact
PCB terminal block, nominal current: 8 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 17, number of rows: 1, number of positions per row: 17, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: Zigzag pinning M, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Angled connection enables multi-row arrangement on the PCB
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 17 pole | |
| Rated voltage | 400 V | |
| Connection | spring-clamp connection | |
| Colour | green | |
| Grid | 3.5 mm | |
| AWG cross-section | AWG 24-16 | |
| Cable cross-section | 0.2-1.5 mm² | |
| Assembly | THT | |
| Height | 16.7 mm | |
| Width | 61 mm | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
