1985247 | Phoenix Contact
PCB terminal, 7 pole, pitch 3.5 mm, AWG 24-16, 8 A, spring-clamp connection, green, 1985247
Unit Price (€ / pc.)
1.4042 € *
Available: 140 pcs.
Available in 10 days: 4,480 pcs. - if ordered today

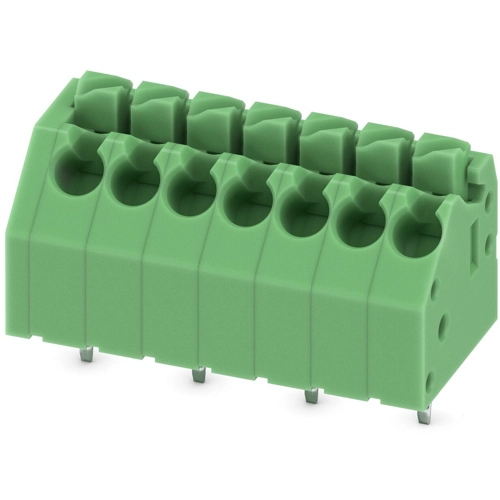

PCB terminal, 1985247, Phoenix Contact
PCB terminal block, nominal current: 8 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 7, number of rows: 1, number of positions per row: 7, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: Zigzag pinning M, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Angled connection enables multi-row arrangement on the PCB
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-16 | |
| Depth | 12 mm | |
| Pin number | 7 pole | |
| Colour | green | |
| Cable cross-section | 0.2-1.5 mm² | |
| Connection | spring-clamp connection | |
| Grid | 3.5 mm | |
| Rated voltage | 400 V | |
| Rated current | 8 A | |
| Width | 26 mm | |
| Assembly | THT | |
| Height | 16.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
