1984905 | Phoenix Contact

PCB terminal, 16 pole, pitch 3.5 mm, AWG 26-16, 17.5 A, screw connection, green, 1984905

Order No.: 09H2334
EAN: 4017918946456
MPN:
1984905
PT 1,5/16-3,5-V
Series: PT

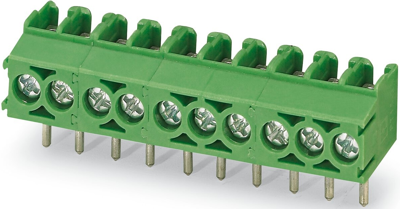

1984905 Phoenix Contact PCB Terminal Blocks Image 1

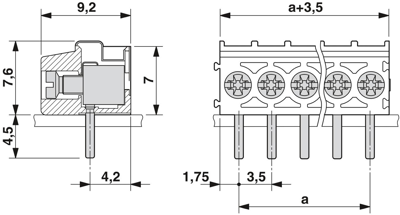

1984905 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
5.6763 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
5.68 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6763 €
10 pcs.
5.2241 €
50 pcs.
4.7481 €
100 pcs.
4.2840 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1984905, Phoenix Contact

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm², number of potentials: 16, number of rows: 1, number of positions per row: 16, pitch: 3.5 mm, connection method: screw connection with wire protector, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 4.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • High terminal block capacity thanks to rectangular terminal block space
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Height 12.05 mm
Grid 3.5 mm
Depth 9.15 mm
Pin number 16 pole
Connection screw connection
Colour green
Rated current 17.5 A
Cable cross-section 0.2-1.5 mm²
Width 56 mm
Rated voltage 200 V
AWG cross-section AWG 26-16
Logistics
Customs tariff number 85369010
Country of origin CN
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
