1984853 | Phoenix Contact

PCB terminal, 11 pole, pitch 3.5 mm, AWG 26-16, 17.5 A, screw connection, green, 1984853

Order No.: 09H2329
EAN: 4017918946401
MPN:
1984853
PT 1,5/11-3,5-V
Series: PT

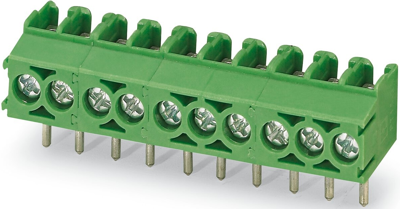

1984853 Phoenix Contact PCB Terminal Blocks Image 1

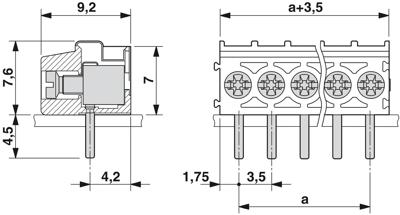

1984853 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
4.0698 € *
Available in 5 Days: 50 pcs. - if ordered today
Total Price:
4.07 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0698 €
10 pcs.
3.7485 €
50 pcs.
3.4034 €
100 pcs.
3.0702 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1984853, Phoenix Contact

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm², number of potentials: 11, number of rows: 1, number of positions per row: 11, pitch: 3.5 mm, connection method: screw connection with wire protector, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 4.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • High terminal block capacity thanks to rectangular terminal block space
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Filter Property Value
Grid 3.5 mm
Width 38.5 mm
Connection screw connection
Pin number 11 pole
Cable cross-section 0.2-1.5 mm²
Height 12.05 mm
Depth 9.15 mm
Assembly THT
Colour green
Rated current 17.5 A
Rated voltage 200 V
AWG cross-section AWG 26-16
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
