1984390 | Phoenix Contact
PCB terminal, 10 pole, pitch 3.5 mm, AWG 26-16, 8 A, screw connection, green, 1984390
Unit Price (€ / pc.)
3.5700 € *
Standard delivery time from the manufacturer is: 7 Weeks

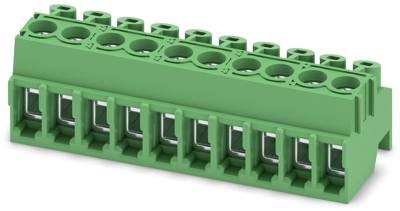

PCB terminal, 1984390, Phoenix Contact
PCB connector, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 200 V, contact surface: tin, type of contact: female connector, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, pitch: 3.5 mm, connection method: screw connection with wire protector, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PST 1,0, locking: without, mounting: without.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- High terminal block capacity thanks to rectangular terminal block space
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 8 A | |
| Cable cross-section | 0.2-1.5 mm² | |
| Grid | 3.5 mm | |
| AWG cross-section | AWG 26-16 | |
| Height | 11 mm | |
| Rated voltage | 200 V | |
| Width | 35 mm | |
| Connection | screw connection | |
| Pin number | 10 pole | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
