1935459 | Phoenix Contact

PCB terminal, 16 pole, pitch 5 mm, AWG 26-14, 17.5 A, screw connection, green, 1935459

Order No.: 09H2384
EAN: 4017918924034
MPN:
1935459
PT 1,5/16-5,0-V
Series: PT
1935459 Phoenix Contact PCB Terminal Blocks Image 1
1935459 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
5.3550 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
5.36 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3550 €
10 pcs.
4.9385 €
50 pcs.
4.4982 €
100 pcs.
4.0341 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1935459, Phoenix Contact

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 16, number of rows: 1, number of positions per row: 16, pitch: 5 mm, connection method: screw connection with wire protector, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • High terminal block capacity thanks to rectangular terminal block space
  • The latching on the side enables various numbers of positions to be combined

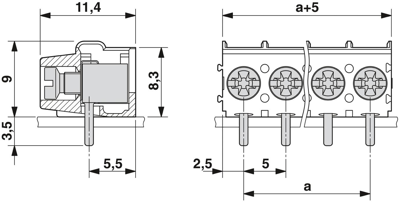

Technical specifications
Height 12.5 mm
Grid 5 mm
Depth 11.4 mm
Pin number 16 pole
Connection screw connection
Colour green
Rated current 17.5 A
Cable cross-section 0.2-2.5 mm²
Width 80 mm
Rated voltage 400 V
AWG cross-section AWG 26-14
Logistics
Customs tariff number 85369010
Country of origin CN
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
