1935187 | Phoenix Contact

PCB terminal, 4 pole, pitch 5 mm, AWG 26-14, 17.5 A, screw connection, green, 1935187

Order No.: 09H2352
EAN: 4017918916954
MPN:
1935187
PT 1,5/ 4-5,0-H
Series: PT

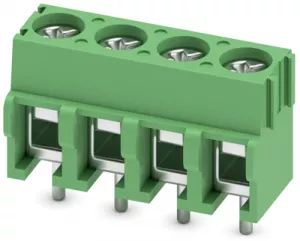

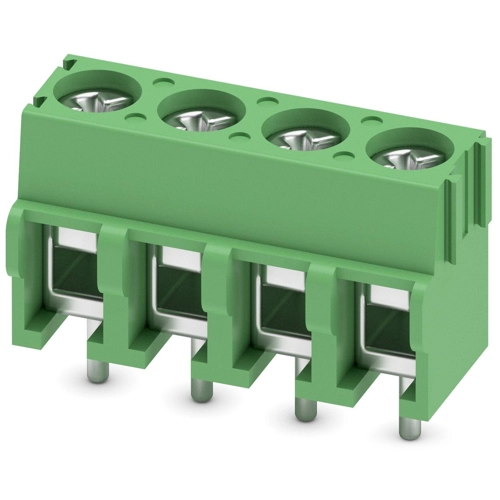

1935187 Phoenix Contact PCB Terminal Blocks Image 1

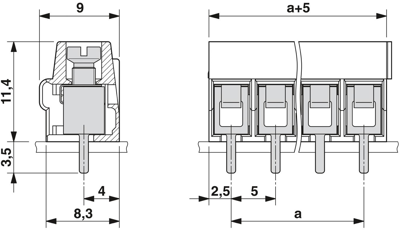

1935187 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.2019 € *
Available: 9 pcs.
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
10 pcs.
1.1067 €
50 pcs.
0.9996 €
100 pcs.
0.9044 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1935187, Phoenix Contact

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 5 mm, connection method: screw connection with wire protector, screw head form: H1L Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • High terminal block capacity thanks to rectangular terminal block space
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Filter Property Value
Rated voltage 400 V
Rated current 17.5 A
Grid 5 mm
Colour green
Connection screw connection
Depth 9 mm
Pin number 4 pole
Cable cross-section 0.2-2.5 mm²
AWG cross-section AWG 26-14
Height 14.9 mm
Width 20 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
