1914043 | Phoenix Contact
PCB terminal, 13 pole, pitch 3.5 mm, AWG 26-20, 4 A, spring-clamp connection, green, 1914043
Unit Price (€ / pc.)
4.3554 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
4.36 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3554 €
10 pcs.
4.0103 €
50 pcs.
3.6533 €
100 pcs.
3.2844 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1914043, Phoenix Contact
PCB connector, nominal cross section: 0.5 mm², color: green, nominal current: 4 A, rated voltage (III/2): 250 V, contact surface: tin, type of contact: female connector, number of potentials: 13, number of rows: 1, number of positions: 13, number of connections: 26, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PST 1,0, locking: without, mounting: without.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Potentials can be easily looped through – ideal for BUS applications

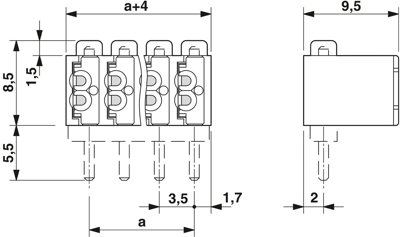

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 4 A | |
| Colour | green | |
| Width | 46 mm | |
| Connection | spring-clamp connection | |
| Height | 8.5 mm | |
| AWG cross-section | AWG 26-20 | |
| Grid | 3.5 mm | |
| Rated voltage | 250 V | |
| Pin number | 13 pole | |
| Cable cross-section | 0.12-0.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
