1914030 | Phoenix Contact

PCB terminal, 12 pole, pitch 3.5 mm, AWG 26-20, 4 A, spring-clamp connection, green, 1914030

Order No.: 62P9446
EAN: 4017918176938
MPN:
1914030
FK-MPT 0,5/12-ST-3,5
Series: FK-MPT

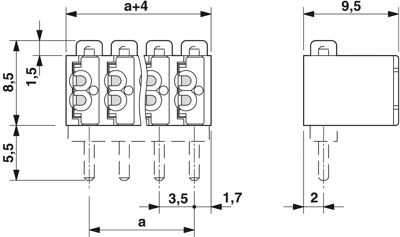

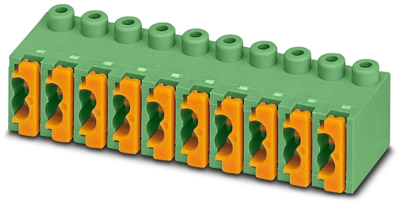

1914030 Phoenix Contact PCB Terminal Blocks Image 1
1914030 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
4.0222 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
4.02 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0222 €
10 pcs.
3.7009 €
50 pcs.
3.3677 €
100 pcs.
3.0345 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1914030, Phoenix Contact

PCB connector, nominal cross section: 0.5 mm², color: green, nominal current: 4 A, rated voltage (III/2): 250 V, contact surface: tin, type of contact: female connector, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 24, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PST 1,0, locking: without, mounting: without.

Features

  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Intuitive use through colour coded actuation lever
  • Potentials can be easily looped through – ideal for BUS applications
Technical specifications
Filter Property Value
Grid 3.5 mm
Connection spring-clamp connection
Height 8.5 mm
Rated current 4 A
Colour green
Rated voltage 250 V
Cable cross-section 0.12-0.5 mm²
AWG cross-section AWG 26-20
Pin number 12 pole
Width 42.5 mm
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
