1913921 | Phoenix Contact
PCB terminal, 2 pole, pitch 3.5 mm, AWG 26-20, 4 A, spring-clamp connection, green, 1913921
Unit Price (€ / pc.)
0.6664 € *
Available in 10 days: 3,850 pcs. - if ordered today
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6664 €
10 pcs.
0.6188 €
50 pcs.
0.5593 €
100 pcs.
0.5117 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1913921, Phoenix Contact
PCB connector, nominal cross section: 0.5 mm², color: green, nominal current: 4 A, rated voltage (III/2): 250 V, contact surface: tin, type of contact: female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 4, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PST 1,0, locking: without, mounting: without.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Potentials can be easily looped through – ideal for BUS applications

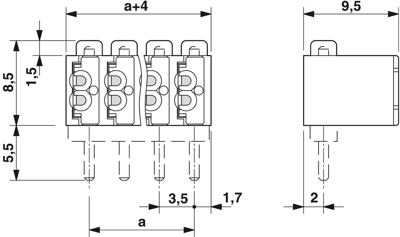

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 4 A | |
| Colour | green | |
| Width | 7.5 mm | |
| Connection | spring-clamp connection | |
| Height | 8.5 mm | |
| AWG cross-section | AWG 26-20 | |
| Grid | 3.5 mm | |
| Rated voltage | 250 V | |
| Pin number | 2 pole | |
| Cable cross-section | 0.12-0.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
