1907131 | Phoenix Contact
PCB terminal, 2 pole, pitch 7.62 mm, AWG 24-10, 32 A, screw connection, green, 1907131
Unit Price (€ / pc.)
1.9278 € *
Available in 10 days: 4,850 pcs. - if ordered today
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9278 €
10 pcs.
1.7850 €
50 pcs.
1.6184 €
100 pcs.
1.4637 €
*incl. VAT plus shipping costs
Subject to prior sale

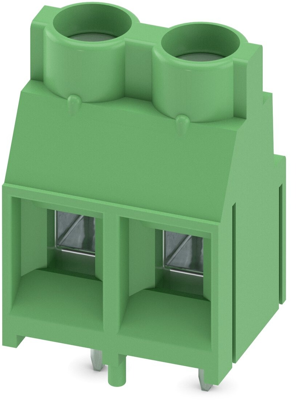

PCB terminal, 1907131, Phoenix Contact

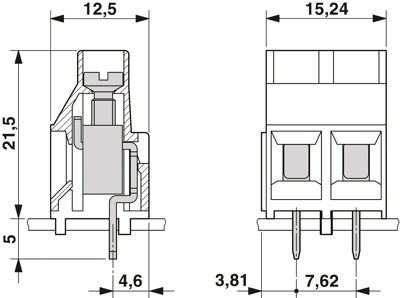

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 7.62 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5.1 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Anti-rotation pins support positioning on the PCB

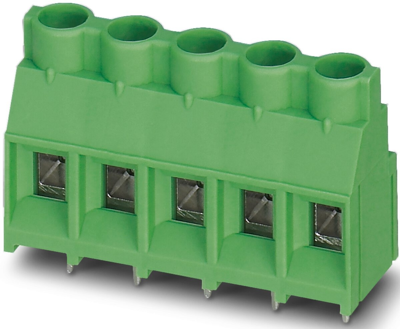

- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 26.6 mm | |
| Rated voltage | 630 V | |
| AWG cross-section | AWG 24-10 | |
| Width | 15.24 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Pin number | 2 pole | |
| Connection | screw connection | |
| Colour | green | |
| Grid | 7.62 mm | |
| Assembly | THT | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
