1905984 | Phoenix Contact

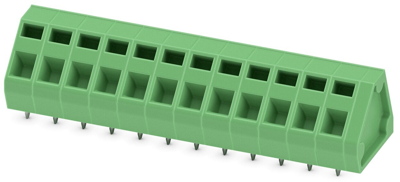

PCB terminal, 12 pole, pitch 5.08 mm, AWG 24-14, 16 A, spring-clamp connection, green, 1905984
Unit Price (€ / pc.)
5.5692 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
5.57 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5692 €
10 pcs.
5.1289 €
50 pcs.
4.6529 €
100 pcs.
4.2007 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1905984, Phoenix Contact
PCB terminal block, nominal current: 16 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 12, number of rows: 1, number of positions per row: 12, pitch: 5.08 mm, connection method: spring-cage connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.
Features
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Angled connection enables multi-row arrangement on the PCB
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 24-14 | |
| Rated current | 16 A | |
| Grid | 5.08 mm | |
| Width | 63.5 mm | |
| Height | 17.7 mm | |
| Cable cross-section | 0.2-2.5 mm² | |
| Pin number | 12 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 400 V |
Download
Logistics
| Country of origin | GR |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
