1891108 | Phoenix Contact
PCB terminal, 6 pole, pitch 3.5 mm, AWG 26-20, 4 A, push-in, green, 1891108
Unit Price (€ / pc.)
1.6898 € *
Available in 10 days: 2,250 pcs. - if ordered today
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6898 €
10 pcs.
1.5589 €
50 pcs.
1.4518 €
100 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal blocks, 1891108, Phoenix Contact
Printed circuit board terminal, nominal current: 4 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm², number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: FK-MPT 0,5/..-V, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive operation due to color-coded actuating push button
- Potentials can be easily looped through – ideal for BUS applications
- Small component size for applications where space is at a premium
- Vertical connection enables multi-row arrangement on the PCB

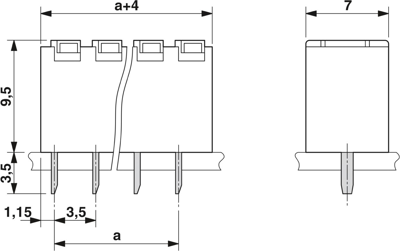

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole | |
| Rated voltage | 250 V | |
| AWG cross-section | AWG 26-20 | |
| Depth | 7 mm | |
| Connection | push-in | |
| Width | 21.5 mm | |
| Cable cross-section | 0.12-0.5 mm² | |
| Rated current | 4 A | |
| Assembly | THT | |
| Height | 13 mm | |
| Colour | green | |
| Grid | 3.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
