1891043 | Phoenix Contact

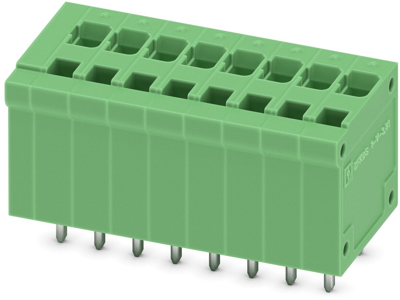

PCB terminal, 8 pole, pitch 3.81 mm, AWG 26-16, 12 A, tension spring, green, 1891043
Unit Price (€ / pc.)
4.2602 € *
Standard delivery time from the manufacturer is: On Request
PCB terminal, 1891043, Phoenix Contact
PCB terminal block, nominal current: 12 A, rated voltage (III/2): 200 V, nominal cross section: 1 mm², number of potentials: 8, number of rows: 1, number of positions per row: 8, pitch: 3.81 mm, connection method: spring-cage connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.
Features
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Vertical connection enables multi-row arrangement on the PCB
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | tension spring | |
| Colour | green | |
| Pin number | 8 pole | |
| AWG cross-section | AWG 26-16 | |
| Rated voltage | 200 V | |
| Assembly | THT | |
| Rated current | 12 A | |
| Cable cross-section | 0.14-1.5 mm² | |
| Grid | 3.81 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
