1888687 | Phoenix Contact
PCB terminal, 2 pole, pitch 5.08 mm, AWG 24-14, 16 A, screw connection, green, 1888687
Unit Price (€ / pc.)
0.9401 € *
Available in 5 Days: 5,500 pcs. - if ordered today
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.8568 €
100 pcs.
0.7378 €
*incl. VAT plus shipping costs
Subject to prior sale

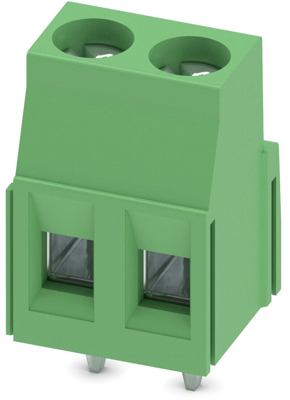

PCB terminal, 1888687, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: H1L Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, color: green, pin layout: Linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
- The latching on the side enables various numbers of positions to be combined

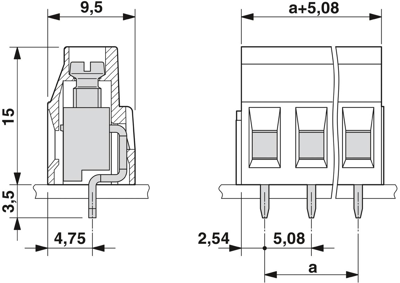

Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-14 | |
| Colour | green | |
| Pin number | 2 pole | |
| Grid | 5.08 mm | |
| Width | 10.16 mm | |
| Assembly | THT | |
| Rated voltage | 400 V | |
| Rated current | 16 A | |
| Connection | screw connection | |
| Height | 18.5 mm | |
| Cable cross-section | 0.2-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
