1877481 | Phoenix Contact
PCB terminal, 2 pole, pitch 5.08 mm, AWG 26-16, 12 A, screw connection, green, 1877481
Unit Price (€ / pc.)
1.7374 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7374 €
10 pcs.
1.5827 €
50 pcs.
1.4518 €
100 pcs.
1.2971 €
*incl. VAT plus shipping costs
Subject to prior sale

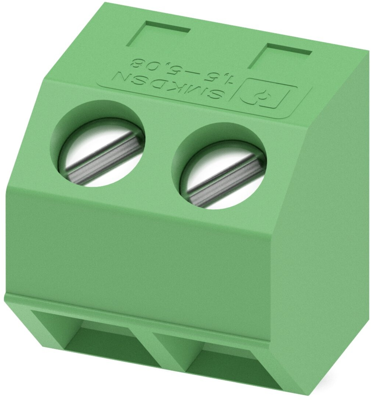

PCB terminal, 1877481, Phoenix Contact

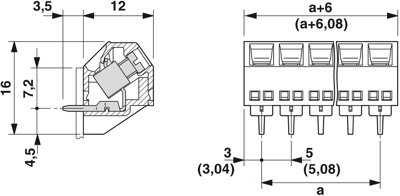

PCB terminal block, nominal current: 12 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 325 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Pin number | 2 pole | |
| Grid | 5.08 mm | |
| Rated voltage | 400 V | |
| Width | 11.16 mm | |
| Cable cross-section | 0.14-1.5 mm² | |
| Rated current | 12 A | |
| Assembly | THT | |
| Connection | screw connection | |
| Height | 15.5 mm | |
| AWG cross-section | AWG 26-16 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
