1869253 | Phoenix Contact

PCB terminal, 6 pole, pitch 5.08 mm, AWG 26-16, 17.5 A, screw connection, green, 1869253

Order No.: 63P5152
EAN: 4017918149222
MPN:
1869253
SMKDSN 1,5/ 6-5,08
Series: SMKDSN 1,5

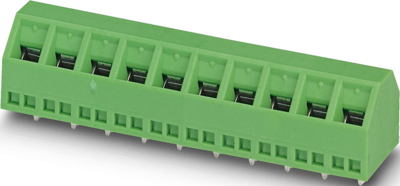

1869253 Phoenix Contact PCB Terminal Blocks Image 1

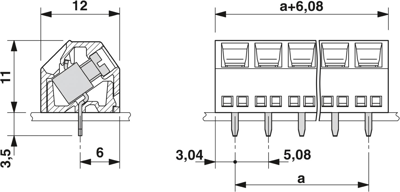

1869253 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.6537 € *
Available in 5 Days: 3,700 pcs. - if ordered today
Total Price:
2.65 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6537 €
10 pcs.
2.4514 €
50 pcs.
2.2848 €
100 pcs.
2.1420 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal blocks, 1869253, Phoenix Contact

Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: SMKDSN 1,5, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1.

Features

  • Well-known connection principle allows worldwide use
  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Angled connection enables multi-row arrangement on the PCB
  • Extremely small design for the respective conductor cross section
Technical specifications
Filter Property Value
Grid 5.08 mm
Width 31.48 mm
Connection screw connection
Pin number 6 pole
Cable cross-section 0.14-1.5 mm²
Height 14.5 mm
Depth 12 mm
Assembly THT
Colour green
Rated current 17.5 A
Rated voltage 400 V
AWG cross-section AWG 26-16
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
