1868144 | Phoenix Contact
PCB terminal, 4 pole, pitch 3.5 mm, AWG 26-16, 12 A, screw connection, green, 1868144
Unit Price (€ / pc.)
2.4038 € *
Available in 10 days: 500 pcs. - if ordered today
Total Price:
2.40 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4038 €
10 pcs.
2.2015 €
50 pcs.
1.9992 €
100 pcs.
1.8088 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1868144, Phoenix Contact

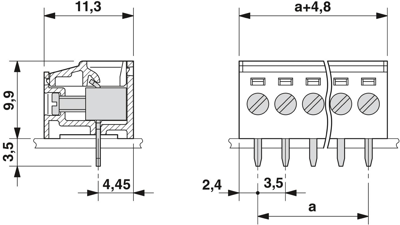

PCB terminal block, nominal current: 12 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 3.5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Stand-offs enable the PCB to be cleaned or sealed
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Rated voltage | 160 V | |
| Connection | screw connection | |
| Colour | green | |
| Grid | 3.5 mm | |
| AWG cross-section | AWG 26-16 | |
| Cable cross-section | 0.14-1.5 mm² | |
| Assembly | THT | |
| Height | 13.9 mm | |
| Width | 15.3 mm | |
| Rated current | 12 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
