1864309 | Phoenix Contact

PCB terminal, 4 pole, pitch 3.5 mm, AWG 24-18, 13.5 A, spring-clamp connection, green, 1864309

Order No.: 63P9605
EAN: 4055626246284
MPN:
1864309
SPTAF 1/ 4-3,5-LL
Series: SPTAF
1864309 Phoenix Contact PCB Terminal Blocks

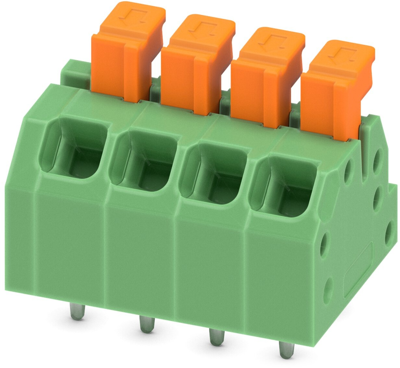

Image may differ
Unit Price (€ / pc.)
1.8088 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
10 pcs.
1.6541 €
50 pcs.
1.5113 €
100 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB terminal, 1864309, Phoenix Contact

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 160 V, nominal cross section: 1 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 2.6 mm, number of solder pins per potential: 2.

Features

  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Finger-operated release button for very convenient operation
  • Quick and convenient testing using integrated test option
Technical specifications
Filter Property Value
Grid 3.5 mm
Connection spring-clamp connection
Height 13.5 mm
Assembly THT
Rated current 13.5 A
Colour green
Rated voltage 160 V
Contact distance RM 3.5/5
Cable cross-section 0.2-0.75 mm²
AWG cross-section AWG 24-18
Pin number 4 pole
Width 15.5 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
