1862505 | Phoenix Contact

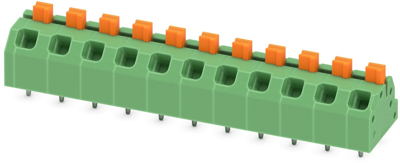

PCB terminal, 11 pole, pitch 5 mm, AWG 24-16, 16 A, spring-clamp connection, green, 1862505
Unit Price (€ / pc.)
4.5101 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
4.51 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5101 €
10 pcs.
4.1412 €
50 pcs.
3.7723 €
100 pcs.
3.3915 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1862505, Phoenix Contact
PCB terminal block, nominal current: 16 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm², number of potentials: 11, number of rows: 1, number of positions per row: 11, pitch: 5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 2.6 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Quick and convenient testing using integrated test option
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 24-16 | |
| Rated current | 16 A | |
| Grid | 5 mm | |
| Width | 55 mm | |
| Height | 12.8 mm | |
| Cable cross-section | 0.2-1.5 mm² | |
| Pin number | 11 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 320 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
