1828374 | Phoenix Contact

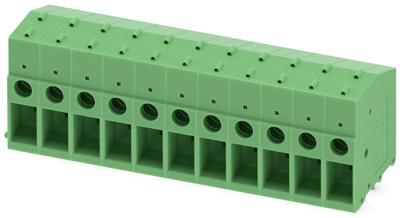

PCB terminal, 11 pole, pitch 7.62 mm, AWG 20-10, 32 A, screw connection, green, 1828374
Unit Price (€ / pc.)
24.4783 € *
Standard delivery time from the manufacturer is: 5 Weeks
PCB terminal, 1828374, Phoenix Contact
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 11, number of rows: 1, number of positions per row: 11, pitch: 7.62 mm, connection method: front screw connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 5 mm, number of solder pins per potential: 2.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Operation and conductor connection from one direction enable integration into front of device
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-10 | |
| Colour | green | |
| Connection | screw connection | |
| Rated voltage | 630 V | |
| Cable cross-section | 0.5-6.0 mm² | |
| Width | 83.82 mm | |
| Height | 34.4 mm | |
| Assembly | THT | |
| Pin number | 11 pole | |
| Grid | 7.62 mm | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | BG |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
