1824624 | Phoenix Contact

PCB terminal, 12 pole, pitch 3.5 mm, AWG 24-16, 13.5 A, spring-clamp connection, black, 1824624

Order No.: 63P9776
EAN: 4046356816823
MPN:
1824624
SPT-SMD 1,5/12-H-3,5 R72
Series: SPT

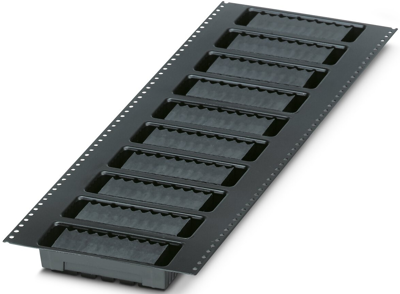

1824624 Phoenix Contact PCB Terminal Blocks Image 1

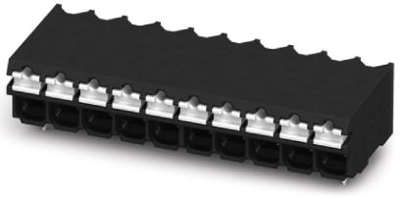

1824624 Phoenix Contact PCB Terminal Blocks Image 2

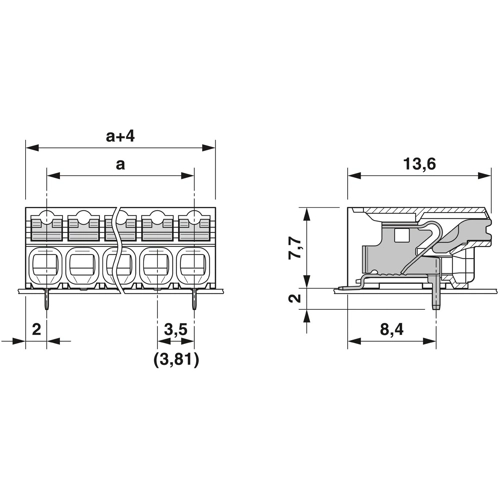

1824624 Phoenix Contact PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
5.3788 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1,613.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
5.3788 €

PCB terminal, 1824624, Phoenix Contact

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of potentials: 12, number of rows: 1, number of positions per row: 12, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: black, pin layout: linear pad geometry, solder pin: 2 mm, number of solder pins per potential: 1.

Features

  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Intuitive use through colour coded actuation lever
  • Quick and convenient testing using integrated test option
  • Anti-rotation pins reduce the mechanical strain on the soldering spots
Technical specifications
Filter Property Value
Grid 3.5 mm
Connection spring-clamp connection
Height 9.7 mm
Assembly SMD
Rated current 13.5 A
Colour black
Rated voltage 160 V
Cable cross-section 0.2-1.5 mm²
AWG cross-section AWG 24-16
Pin number 12 pole
Width 42.5 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
