1824093 | Phoenix Contact
PCB terminal, 3 pole, pitch 3.5 mm, AWG 24-16, 13.5 A, spring-clamp connection, black, 1824093
Unit Price (€ / pc.)
1.8802 € *
Available: 0 pcs.
Available in 10 days: 7,400 pcs.
Leadtime: 2 Weeks **
PCB terminal, 1824093, Phoenix Contact
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 90 °, color: black, pin layout: linear pad geometry, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Quick and convenient testing using integrated test option
- Two solder pins reduce the mechanical strain on the soldering spots

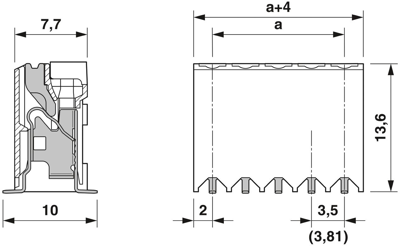

Technical specifications
| Colour | black | |
| AWG cross-section | AWG 24-16 | |
| Rated current | 13.5 A | |
| Grid | 3.5 mm | |
| Width | 11 mm | |
| Height | 13.6 mm | |
| Contact distance | RM 3.5/10 | |
| Cable cross-section | 0.2-1.5 mm² | |
| Pin number | 3 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 160 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
