1822927 | Phoenix Contact

PCB terminal, 8 pole, pitch 3.81 mm, AWG 24-16, 13.5 A, spring-clamp connection, black, 1822927

Order No.: 63P9883
EAN: 4046356811453
MPN:
1822927
SPT-THR 1,5/ 8-H-3,81 P26
Series: SPT

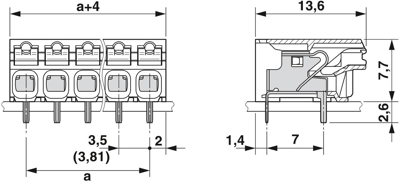

1822927 Phoenix Contact PCB Terminal Blocks Image 1

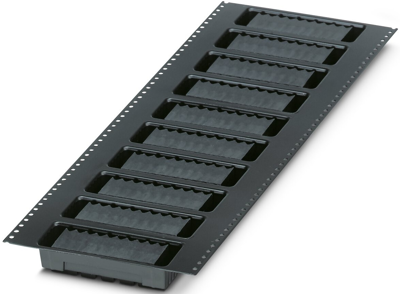

1822927 Phoenix Contact PCB Terminal Blocks Image 2

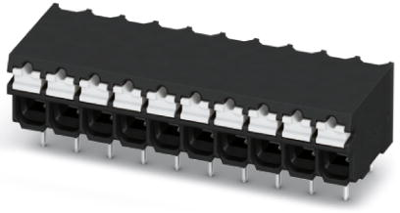

1822927 Phoenix Contact PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
3.0226 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
3.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.0226 €

PCB terminal, 1822927, Phoenix Contact

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of potentials: 8, number of rows: 1, number of positions per row: 8, pitch: 3.81 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: black, pin layout: linear double pinning, solder pin: 2.6 mm, number of solder pins per potential: 2.

Features

  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Intuitive use through colour coded actuation lever
  • Quick and convenient testing using integrated test option
  • Two solder pins reduce the mechanical strain on the soldering spots
Technical specifications
Filter Property Value
Rated voltage 160 V
Rated current 13.5 A
Grid 3.81 mm
Colour black
Connection spring-clamp connection
Pin number 8 pole
Cable cross-section 0.2-1.5 mm²
Contact distance RM 3.81/7
AWG cross-section AWG 24-16
Height 10.3 mm
Width 30.67 mm
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
