1819231 | Phoenix Contact
PCB terminal, 5 pole, pitch 10 mm, AWG 18-4, 76 A, spring-clamp connection, green, 1819231
Order No.: 63P9568
EAN: 4046356788267
MPN:
1819231
SPTA 16/ 5-10,0-ZB
Unit Price (€ / pc.)
11.7929 € *
Available: 0 pcs.
Leadtime: On Request **

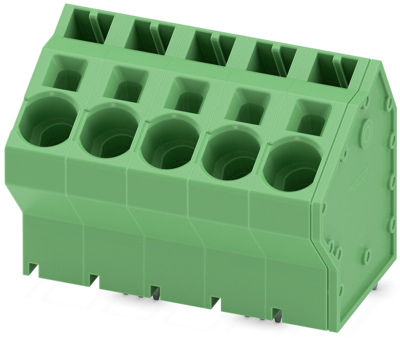

PCB terminal, 1819231, Phoenix Contact
PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, pitch: 10 mm, connection method: push-in spring connection, conductor/PCB connection direction: 60 °, color: green, pin layout: Zigzag pinning W, solder pin: 4.1 mm, number of solder pins per potential: 3.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Angled connection enables multi-row arrangement on the PCB

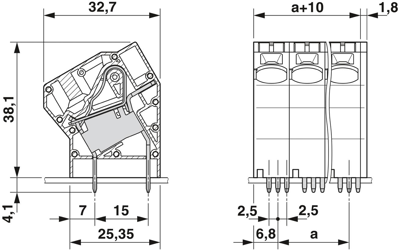

Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 18-4 | |
| Width | 50 mm | |
| Colour | green | |
| Height | 42.2 mm | |
| Contact distance | RM 10/15 | |
| Cable cross-section | 0.75-10 mm² | |
| Rated voltage | 1 kV | |
| Rated current | 76 A | |
| Pin number | 5 pole | |
| Grid | 10 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
