1792106 | Phoenix Contact
PCB terminal, 2 pole, pitch 7.5 mm, AWG 24-10, 41 A, spring-clamp connection, green, 1792106
Discontinued
Unit Price (€ / pc.)
5.0099 € *
Available: 3 pcs.
Total Price:
5.01 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0099 €
10 pcs.
4.5101 €
100 pcs.
3.8318 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1792106, Phoenix Contact
PCB terminal block, nominal current: 41 A, rated voltage (III/2): 1000 V, nominal cross section: 6 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 7.5 mm, connection method: Push-lock spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 3.6 mm, number of solder pins per potential: 1.
Features
- Time saving push-in connection, when lever is closed
- Defined contact force ensures that contact remains stable over the long term
- Quick and convenient testing using integrated test option

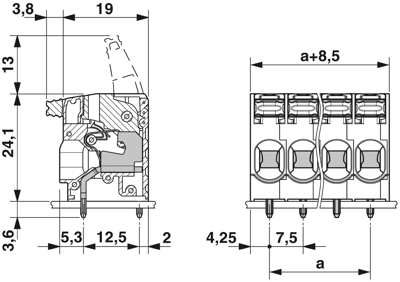

Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-10 | |
| Rated current | 41 A | |
| Height | 27.7 mm | |
| Colour | green | |
| Assembly | THT | |
| Contact distance | RM 7.5/12.5 | |
| Width | 16 mm | |
| Grid | 7.5 mm | |
| Rated voltage | 1 kV | |
| Connection | spring-clamp connection | |
| Pin number | 2 pole | |
| Cable cross-section | 0.2-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
