1791868 | Phoenix Contact
PCB terminal, 1 pole, pitch 5.08 mm, AWG 26-20, 6 A, spring-clamp connection, green, 1791868
Unit Price (€ / pc.)
0.9996 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.9044 €
100 pcs.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale

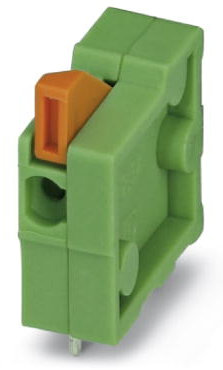

PCB terminal, 1791868, Phoenix Contact
PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 2.54 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.6 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 26-20 | |
| Rated current | 6 A | |
| Grid | 5.08 mm | |
| Width | 7.62 mm | |
| Height | 16.35 mm | |
| Contact distance | RM 5.08 | |
| Cable cross-section | 0.14-0.5 mm² | |
| Pin number | 1 pole | |
| Connection | spring-clamp connection | |
| Rated voltage | 160 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
