1780895 | Phoenix Contact

PCB terminal, 3 pole, pitch 5 mm, AWG 26-16, 17.5 A, screw connection, green, 1780895

Order No.: 63P1702
EAN: 4017918040932
MPN:
1780895
KDSP 1,5/ 3
Series: KDSP

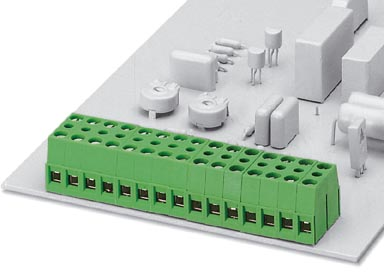

1780895 Phoenix Contact PCB Terminal Blocks
Image may differ
Unit Price (€ / pc.)
7.4613 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
7.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.4613 €

PCB terminal, 1780895, Phoenix Contact

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.7 mm, number of solder pins per potential: 2.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Quick and convenient testing using integrated test option
  • Two solder pins reduce the mechanical strain on the soldering spots
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Filter Property Value
Grid 5 mm
Connection screw connection
Height 17.5 mm
Assembly THT
Rated current 17.5 A
Colour green
Rated voltage 400 V
Cable cross-section 0.14-1.5 mm²
AWG cross-section AWG 26-16
Pin number 3 pole
Width 15 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
