1780536 | Phoenix Contact
PCB terminal, 1 pole, pitch 7.5 mm, AWG 24-10, 41 A, screw connection, green, 1780536
Order No.: 63P1703
EAN: 4017918040925
MPN:
1780536
KDSP 4
Unit Price (€ / pc.)
3.1654 € *
Available: 50 pcs.
Leadtime: 2 Weeks **
Total Price:
3.17 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1654 €
10 pcs.
2.8441 €
100 pcs.
2.4157 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1780536, Phoenix Contact
PCB terminal block, nominal current: 41 A, rated voltage (III/2): 320 V, nominal cross section: 4 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 7.5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 2.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Potentials can be easily looped through with additional connection to the PCB
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined

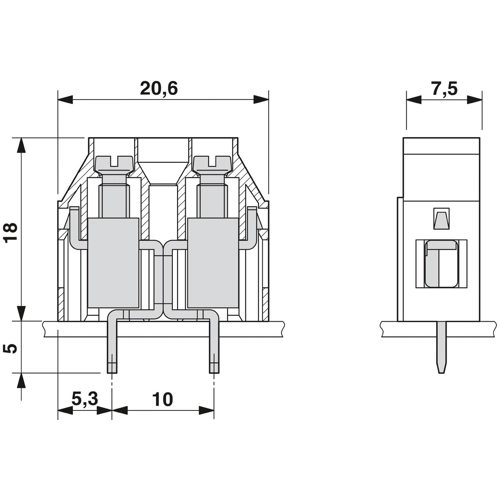

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 24-10 | |
| Width | 7.5 mm | |
| Colour | green | |
| Height | 23 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated voltage | 320 V | |
| Rated current | 41 A | |
| Pin number | 1 pole | |
| Grid | 7.5 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
